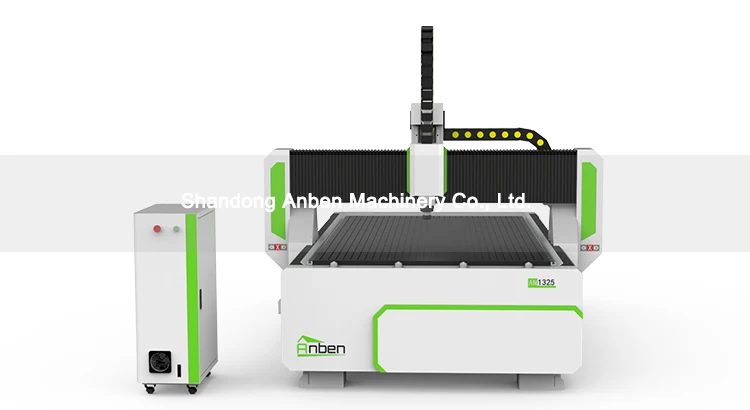

New design external appearance with high rigidity and fine performance. Auto loading wheels help loading more easily.
A. Hole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
B. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.
C. Yaskawa servo system and reducer to make sure speed and stability. YASKAWA servo motors runs smoothly, no vibration phenomenon even in low speed and has overload ability,servo is more reliable and better than stepper.
D. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
E. Well compatibility: CAD/CAM designing software, such as type3/ucancam/artcam, etc.
F. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
G: Automatic oil-injection system allows the machine maintenance mush easier.
T-slot Table / Vacuum & T-slot Table
Heavy-duty Industrial class square tube strong structure
X, Y Structure
Rack and Pinion Drive, Taiwan PMI linear guide rails
Taiwan TBI Ball Screw
3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC
3.7KW / 5.5KW / 7.5KW / 11KW
DSP control system / Nc Studio control system
YASKAWA servo motors and FL118 stepper motors
Max. Rapid Travel Rate
Max. Working Speed
AC380V, 50Hz, 3PH (Option: 220V)
Artcam / Power mill / Type 3 / Ucancam
Application of cnc router machine:
1.Mould: wood,wax, wood, gypsum,foams,wax
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments. 4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds. 5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
Packaging & Shipping
Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests. Delivery Detail: Shipped within 12 working days after payment.
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
Placing order: If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures.
Strat to produce: As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery.
Delivery: After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom
Docusments: After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc.
