4x4ft cnc router 1212 mini 4 axis woodworking machine for aluminium, acrylic, wood cutting

  • >=1 Sets
    $2,550.00
Model Number:
AN1212
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 17 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
100 - 18000 rpm
Positioning Accuracy (mm):
0.03 mm
No. of Spindles:
Single
Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Travel (X Axis)(mm):
1320 mm
Travel (Y Axis)(mm):
2530 mm
Repeatability (X/Y/Z) (mm):
0.04 mm
Spindle Motor Power(kW):
2.2KW
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
ANBEN
Voltage:
220V/110V
Dimension(L*W*H):
1250MM*1250MM*160MM
Certification:
CE ISO
Power (kW):
6
Weight (KG):
800
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Selling Points:
Easy to Operate
Local Service Location:
Canada, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Pakistan, India, Thailand, Japan, Malaysia, Kazakhstan
After Warranty Service:
Video technical support, No service, Spare parts
Showroom Location:
Canada, United States, Italy, France, Germany, Philippines, Pakistan, India, Thailand
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Advertising Company
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, PLC
Product name:
AN1212
Working area:
1250MM*1250MM*160MM
Spindle:
Water Cooling Spindle
Spindle power:
1.5kw, 2.2kw 3.0 Kw
Control system:
MACH3 Control System
Motor:
Stepper Motor
Transmission:
Taiwan Hiwin Linear guide & Taiwan TBI Ball screw
Application:
Cnc router aluminum
Software:
Ucancam / ArtCam/TYPE3
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Outside package: Standard marine export plywood case for mini cnc router.
2.Inner package: Strtech film and plastic film for humidity.
Port
Qingdao, Shanghai, etc
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 17 To be negotiated

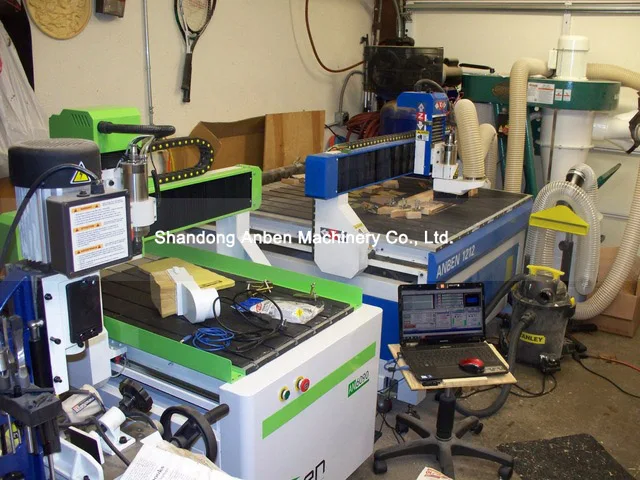

AN1212 CNC ROUTER

Product Description

New design external appearance with high rigidity and fine performance.



Specification

Description

Parameter

Model

AN6090

AN1212

AN1218

AN-Customize

Working area(X*Y*Z)

600*900*160mm

1200*1200*160mm

1200*1800*160mm

Customize

Table Surface

T-slot Table with PVC protection

Frame

Cast iron structure

X, Y Structure

Rack and Pinion Drive, Taiwan PMI linear guide rails

Z Structure

Taiwan TBI Ball Screw

Spindle Power

1.5KW / 2.2KW / 3KW

VFD Power

1.5KW / 2.2KW / 3.7KW

Operating System

Mach 3 control system / DSP control system

Drive Motors

Leadshine drive and stepper motors

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cutting accuracy

±0.03/1000mm

Working Voltage

AC220V, 50Hz, 1PH (Option: 110V)

Command Language

G Code

Software Compatibility

Artcam / Power mill / Type 3 / UcanCam


Application

1.Mould: wood,wax, wood, gypsum,foams,wax

2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.

Packaging & Shipping

Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.

                                2. Outside package: Standard marine export plywood case.

                                We can package according to your requests.
Delivery Detail: Shipped within 12 working days after payment.



Our Services

1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery.

7. Our staff can be sent to your company to install or adjust if necessary.

Popular Products




Company Information

Shandong Anben Machinery Co.,Ltd is a professional cnc router manufacturer in China. Our main products include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Engraving Machine and so on. Our products have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.





We have our own factory and R & D team. Factory covers an area of about 5,000 square meters, specializing in the production of various types of special-shaped machine.





FAQ

Placing order:
If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures.

Strat to produce:
As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc.
Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery.

Delivery:
After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom

Docusments:
After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc.
